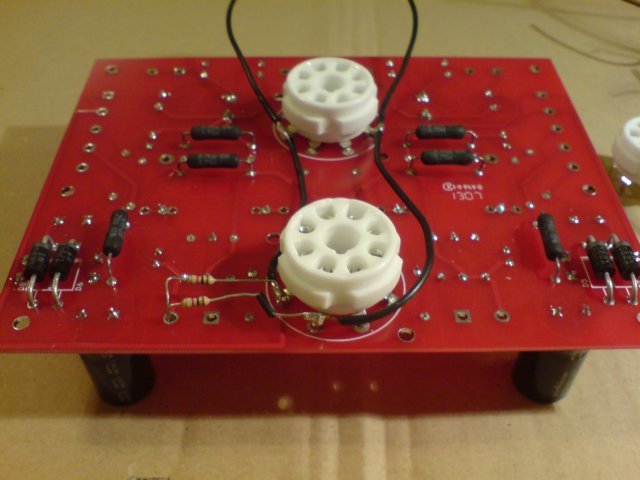

Again, 18 ga solid core wire is flown over the top of the board to the filament socket heaters. These pins are not connected to the circuit board, but bent up before the socket is soldered in. The 2 resistors are 1k ohm 1/4 Watt Radio Shack.
